The project was designed using a combination of horizontal planes and staircases within an assigned 16m x 8m site perimeter and grid of columns.

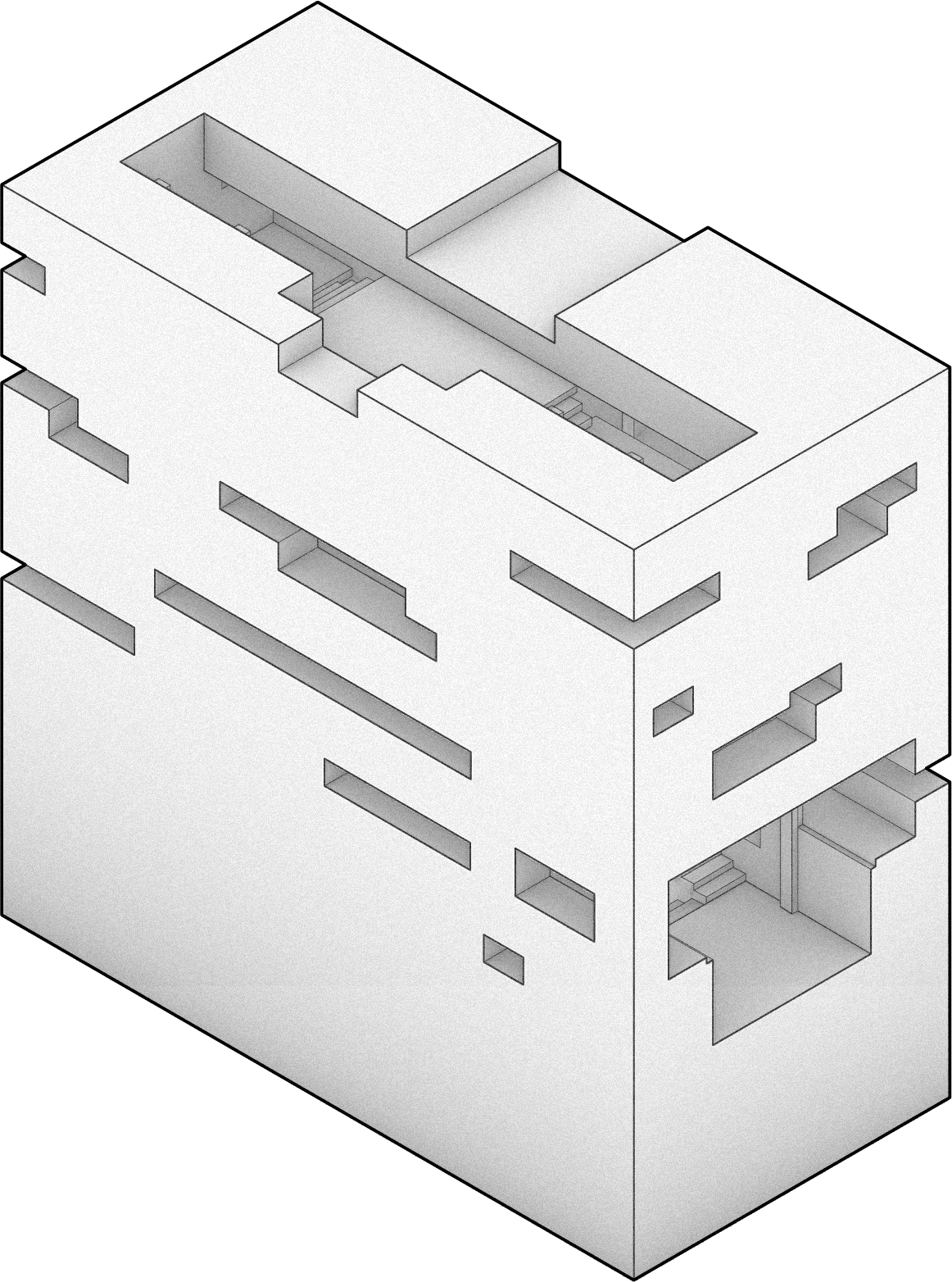

The structure was initially treated as a solid, whereby the circulation system and interior spaces were created by subtracting pieces from the solid creating voids within the structure.
The structure is composed of two room types: open auditorium spaces, and leisure spaces. Both room types are linked through a network of staircases, encouraging the user to walk through the entire interior space.

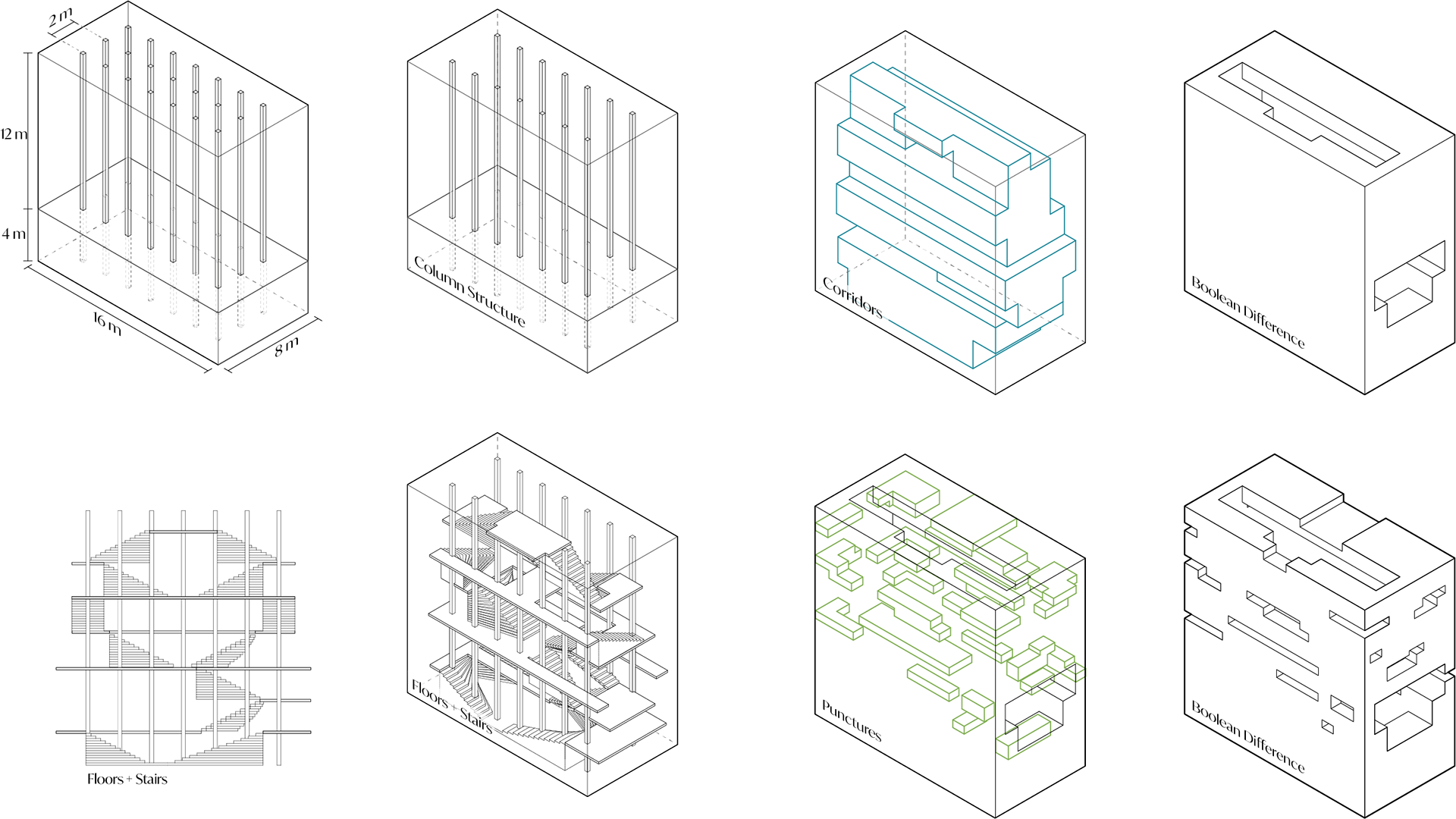

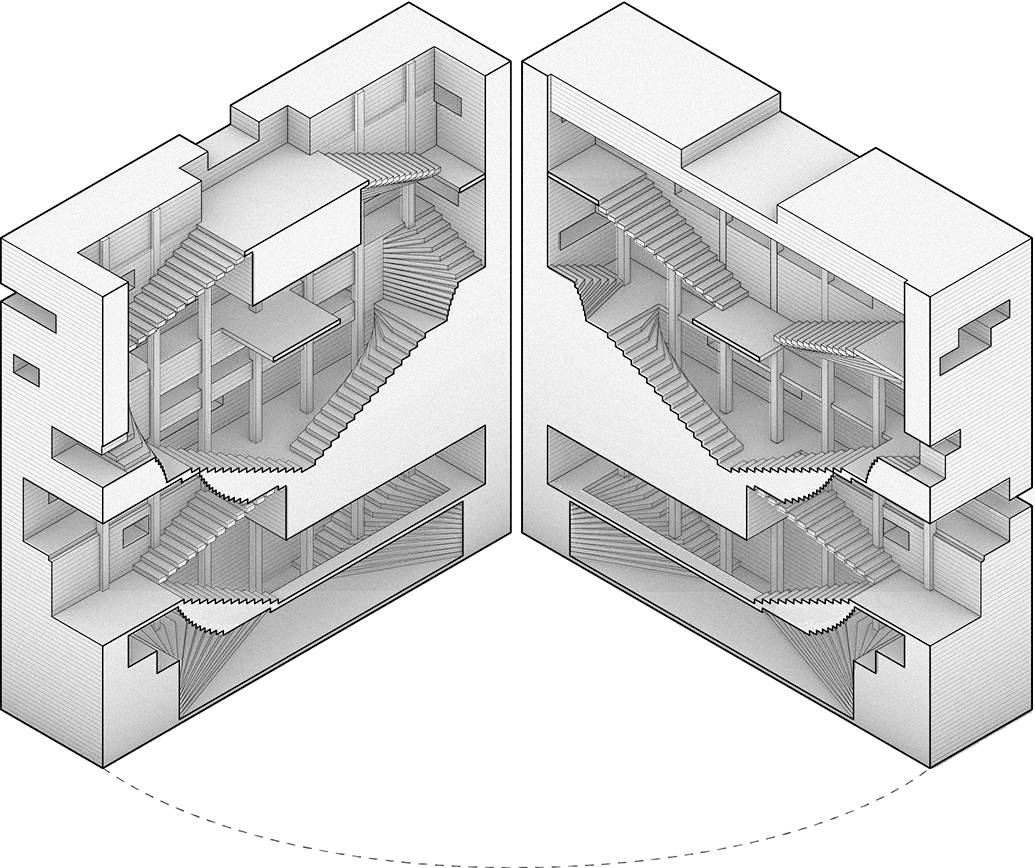

Breakdown of interior features in structure

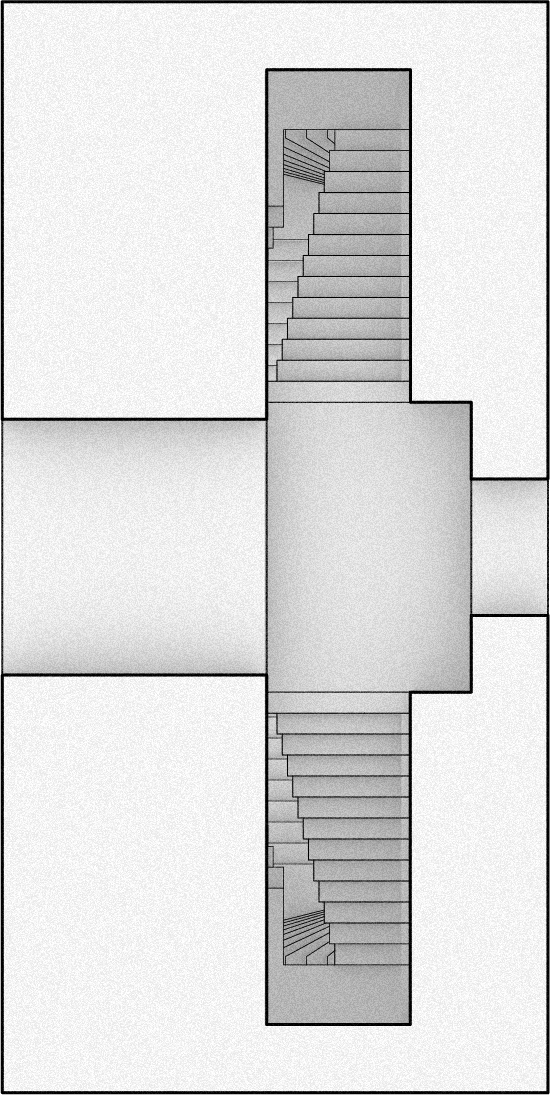

floor plans - level 1, level 2, level 3, level 4, level 5
Sketch model - attempts at visualizing interior space

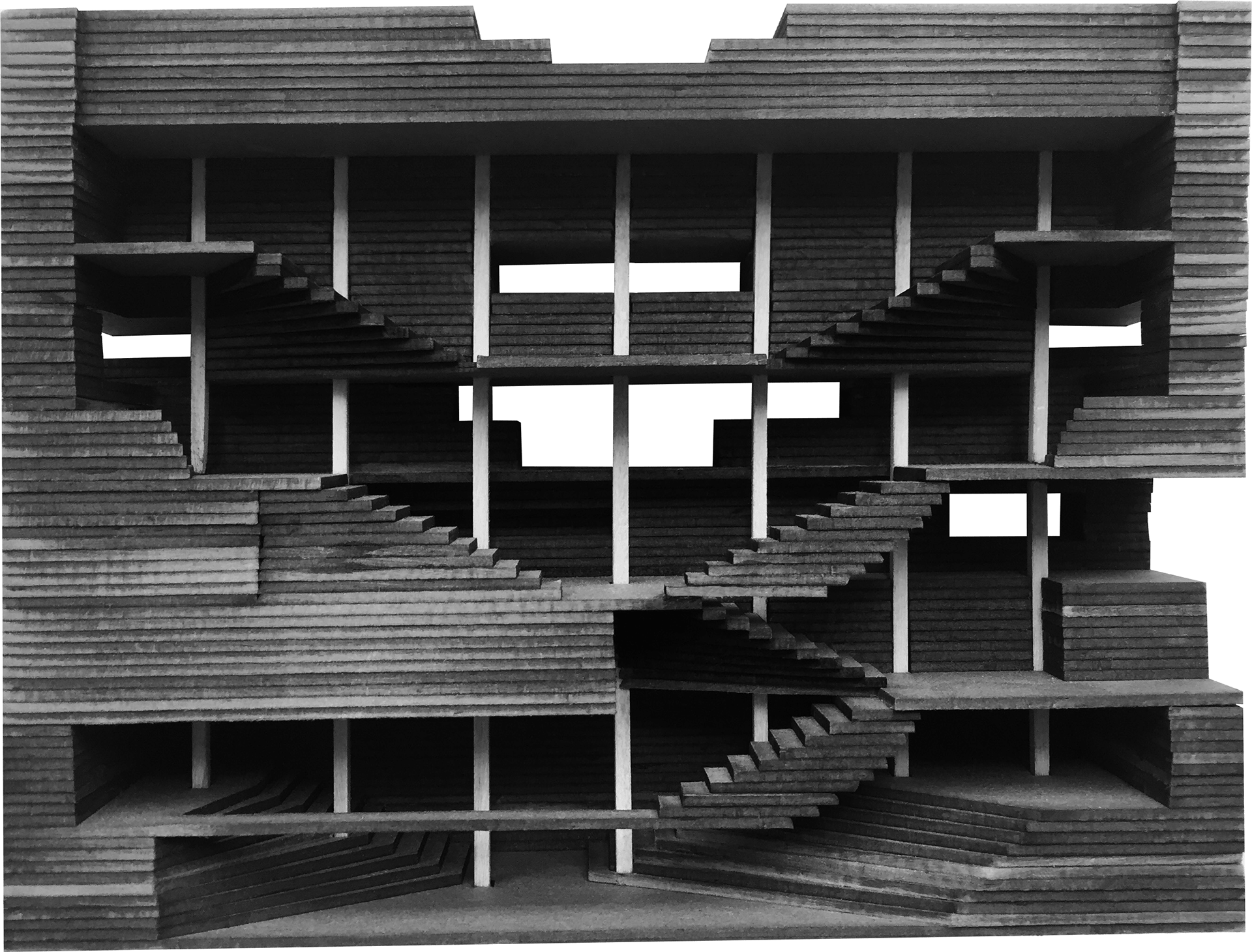

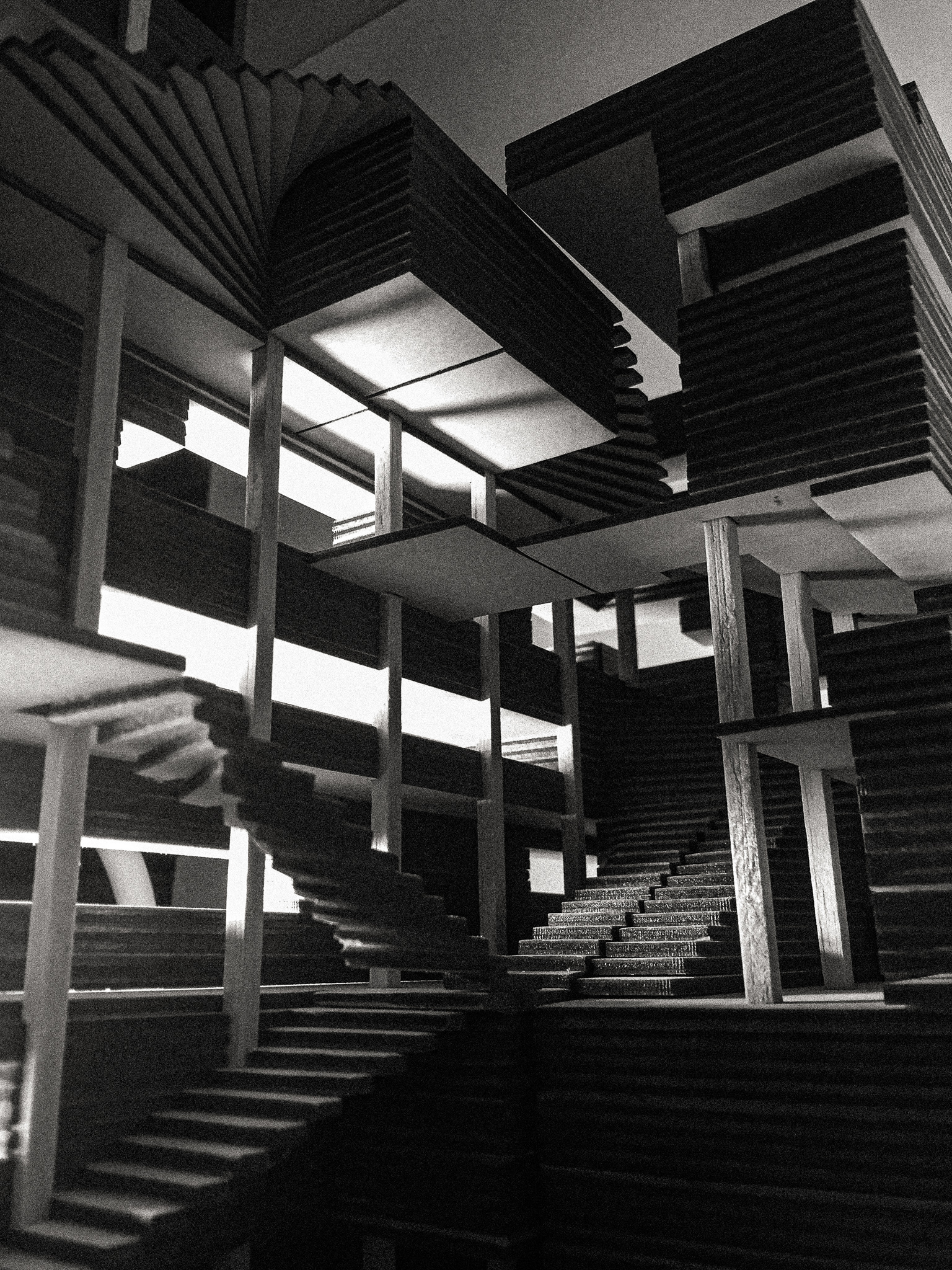

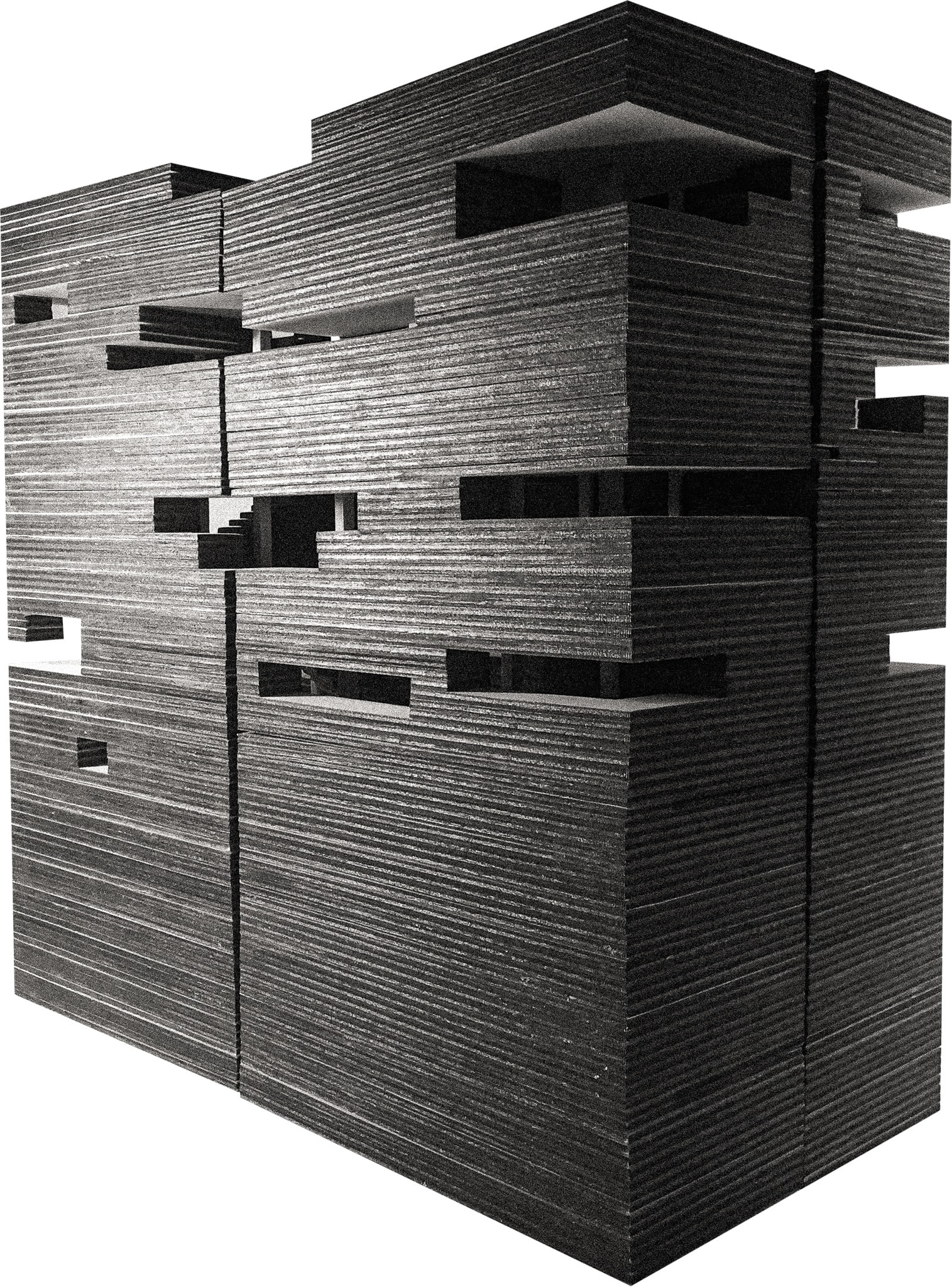

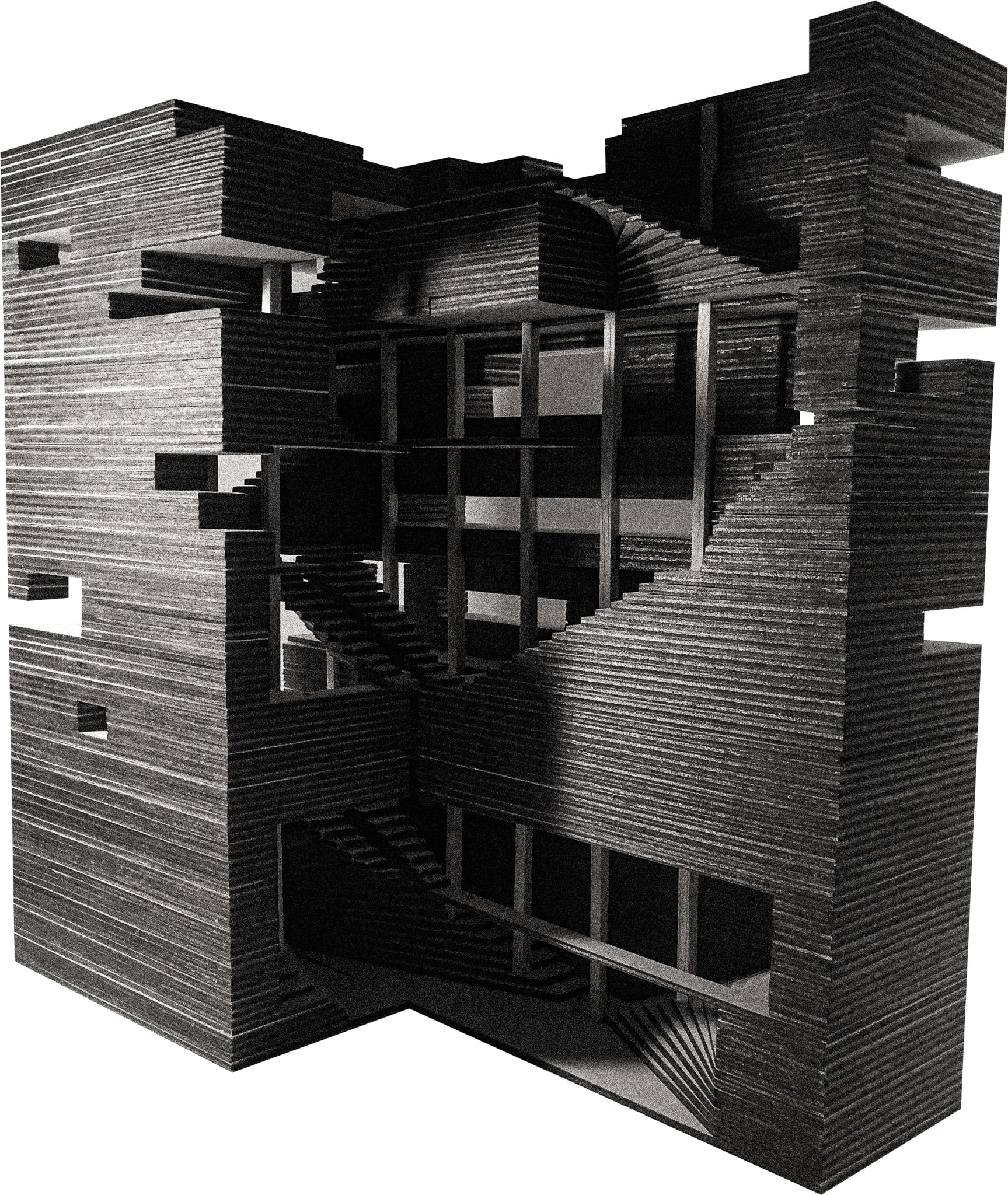

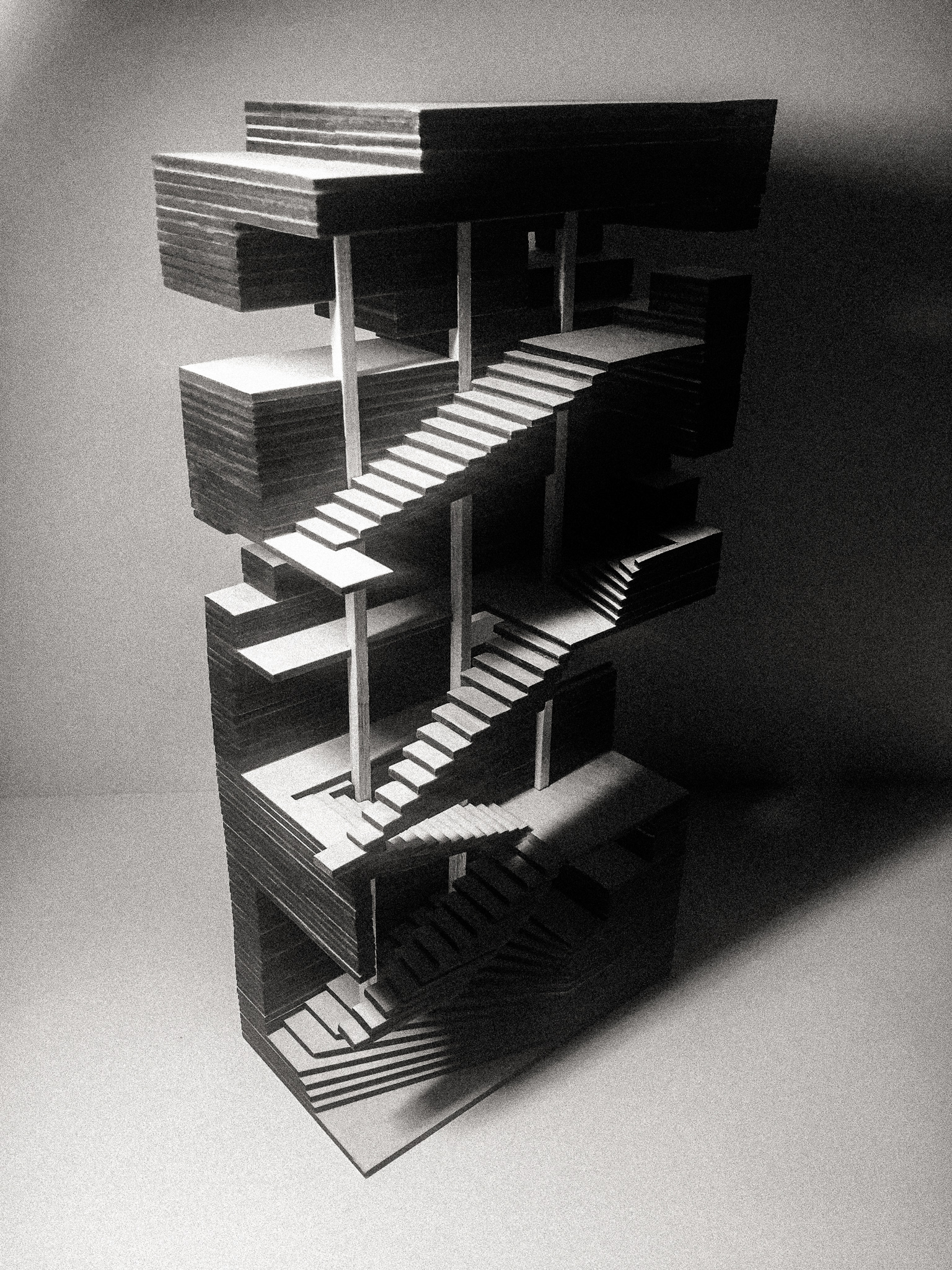

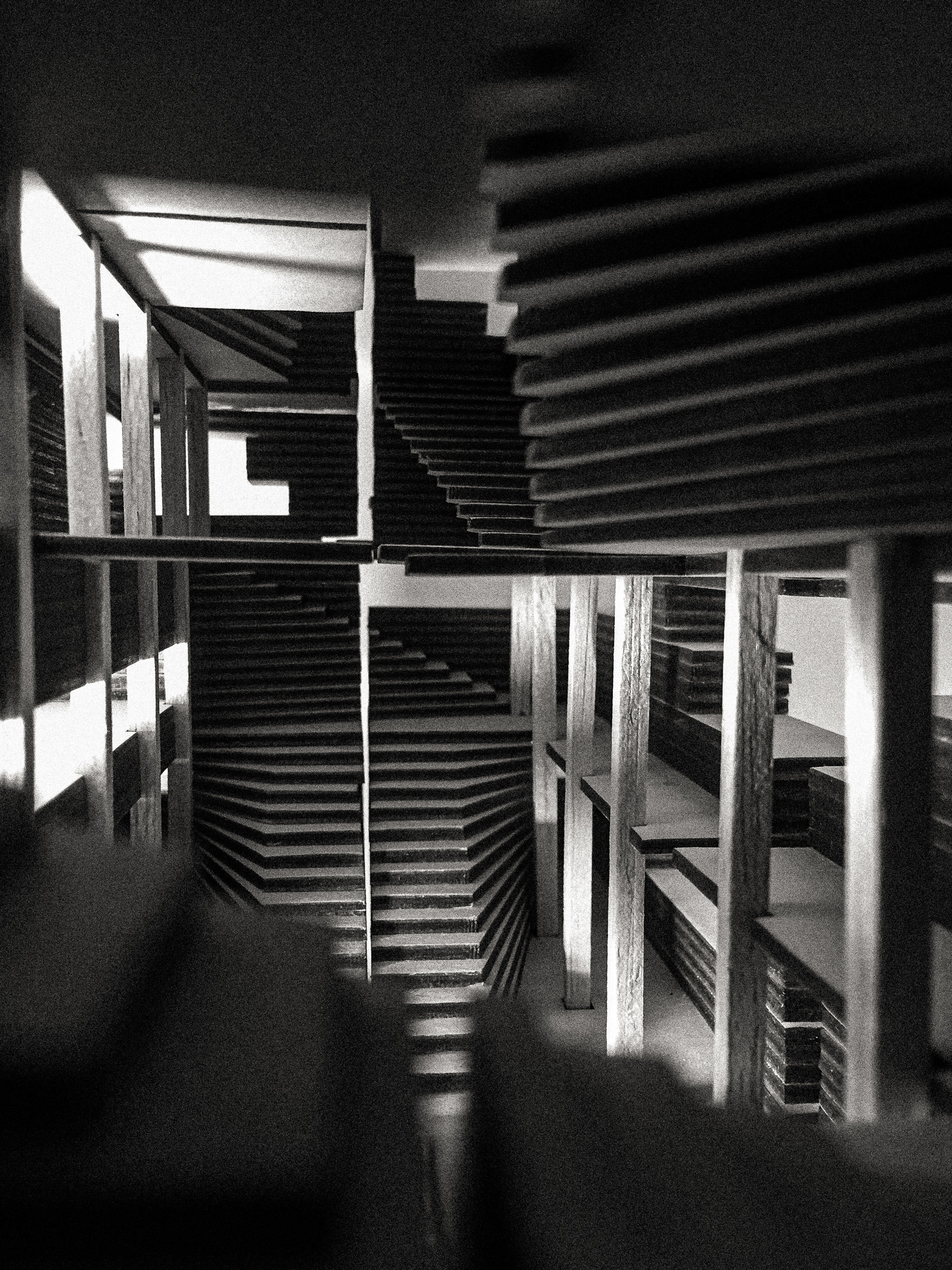

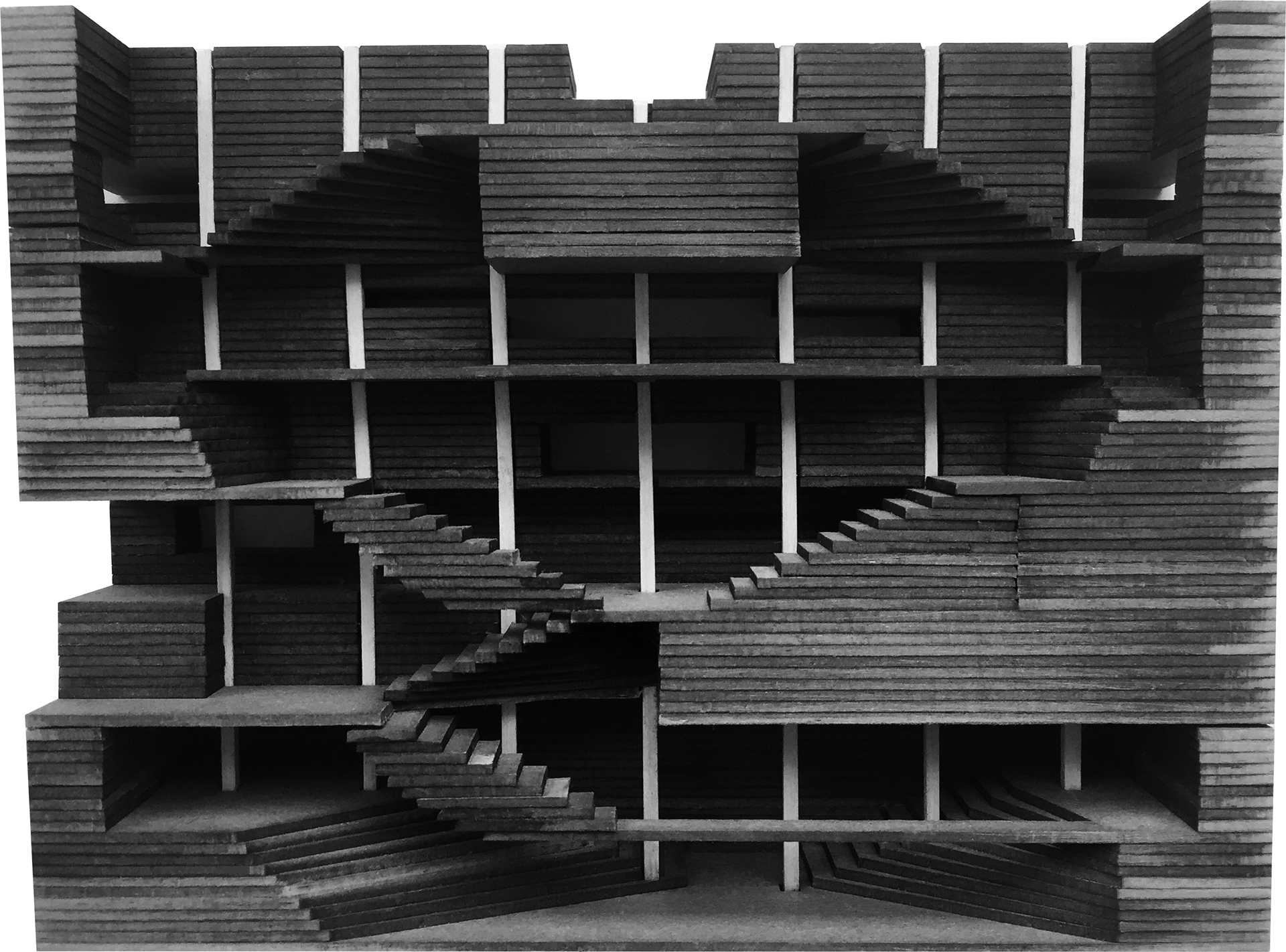

final Model - Photos
Material: Plywood
Method: Lasercut
